CGS Labs Licensing - Network license management

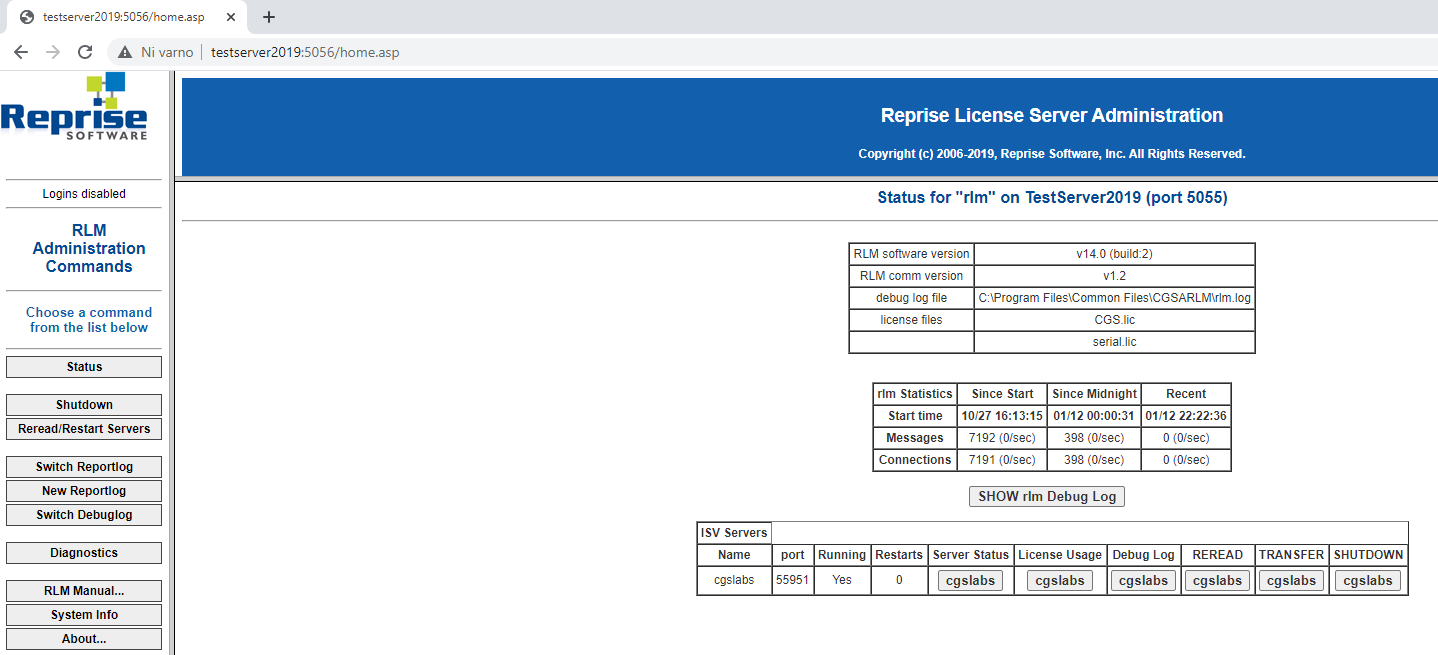

License management/administration for network licenses is performed through the RLM application, which can be reached in a web browser. URL to access it from anywhere in the network: http://testserver2019:5056/home.asp, where testserver2019 is the server name in this example. On the server, you can access it also through localhost: http://localhost:5056/home.asp




Here is a short overlook of the few most important features.

Status

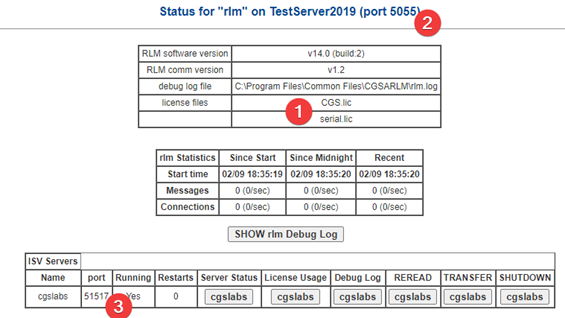

Here you can overview the status of licenses on the network server.

  • Under license files you should see 2 lic files (CGS.lic and serial.lic)
  • Check port number (by default it should be 5055, as is defined in lic files, and added to firewall rules)
  • Check ISV port number (by default it should be 51517, and it is added to firewall rules)


Reread/restart ISV

After all the changes, it is best to reread/restart ISV.


License usage

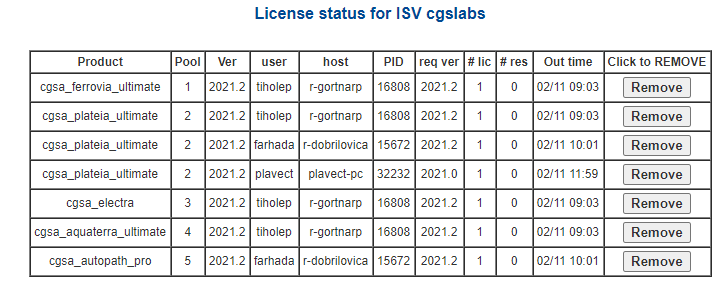

Here you can check which client is using network licenses.




Diagnostics

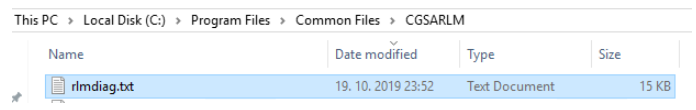

You can run the diagnostics, which is reported to file: C:\Program Files\Common Files\CGSARLM\rlmdiag.txt

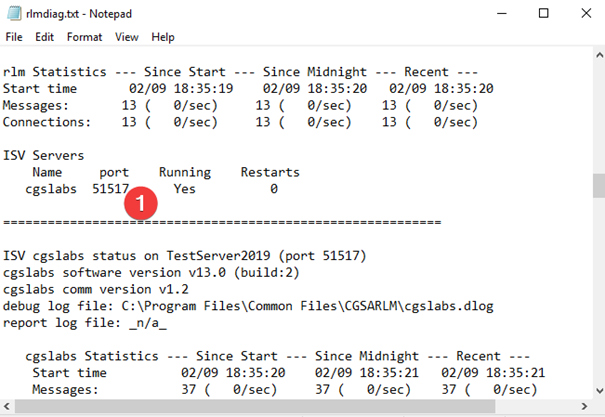

You have full diagnostics in this file, which can be very helpful for troubleshooting. Especially if the Firewall blocks the server-client communication, the port for communication has to be added to firewall rules.
