Network Installation for Key Products

This article will guide you through both the Server and the Client/Workstation installations in separate sections.

Network Server Installation

For a Network server, download and install the License Server Admin Tool from this link below:

Network Server License Manager

Note: - The server port can be changed if required the default communication port is 27099

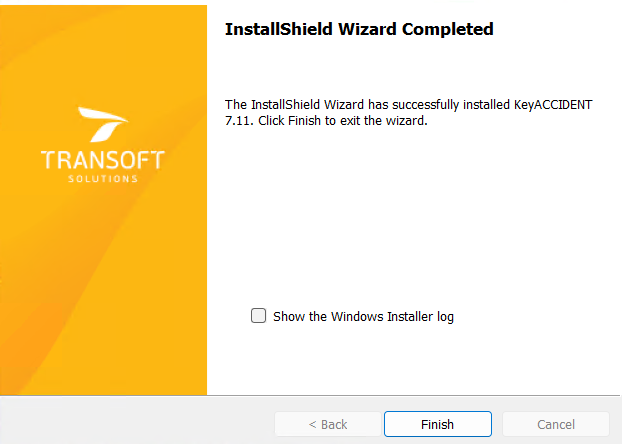

Wait until the completed dialog appears and click finish


Now proceed to the licensing section:-   Licensing of Network Licenses for Key Products



Network Client/Workstation Installation

First, download the Key Product from the my.transoftsolutions.com portal.

Once downloaded, double-click and run through the installation for the product.

At the end of the installation the following screen will be displayed.

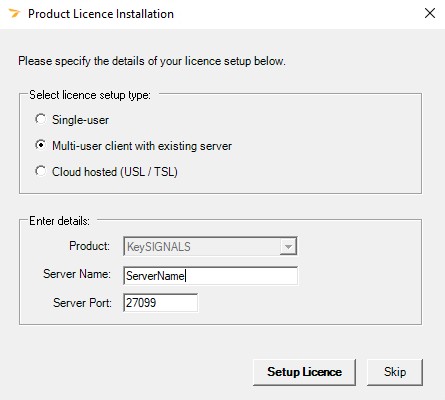

Select Network Client and add the server name or IP address of the server

Network Client.jpg

Then select the 'Setup Licence' button and wait until the following screen appears


This will complete the client install.

Silent installation

For a distributed setup of the software for a number of network clients see below:



For Example KeySIGN 21.3:

KeySIGN_21.3.1_x64.exe /s /v"/qn SERVERTYPE=networkclient SERVERNAME=server SERVERPORT=27099"

  • The option for the SERVERTYPE is Always included and can only be set to = networkclient
  • The option for the SERVERNAME can be set to the name or IP of the Network License Server.
    If not set or not included, it will default to localhost.
  • The option for the SERVERPORT can be set to another port number as used by the Network License Server (we recommend not to change this if possible)
    If not set or not included, it will default to 27099
