Start with Layout Ribbon Panel. Click on the Draw Sample Lines icon.

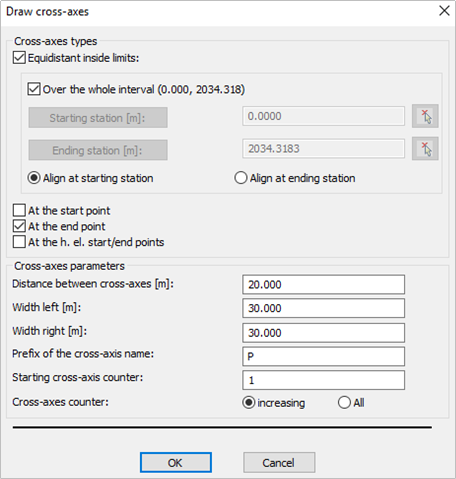

In the Draw cross-axes dialog box define the area where sample lines will be created.
- Over the whole interval
- Define starting and ending station

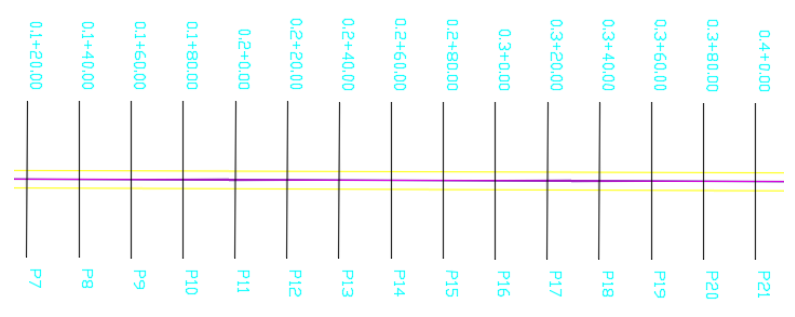

Sample lines can be created at the start point, end point, and at the horizontal elements start/end points.
Define the distance between sample lines [m], width left and right, prefix, and the starting counter of sample lines.
