The Sample Lines Through Points command enables sample lines interactive drawing at user-defined alignment positions.

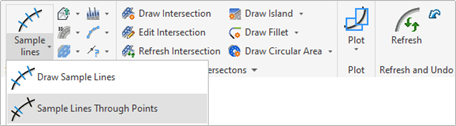

Click on the Sample Lines Through Points icon.

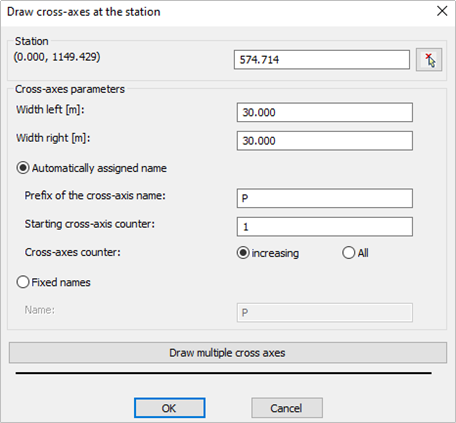

In Draw cross-axes at the station dialog box define a station where you want to draw a sample line.
- Type in a station
- With the button
Define sample line width left and right, prefix, and sample line counter.

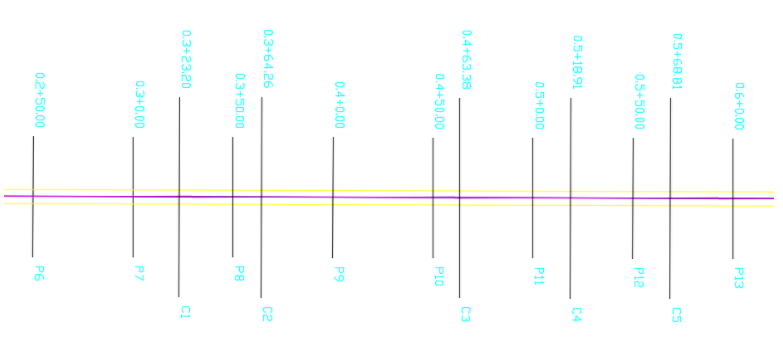

Click the button Draw multiple cross-axes to draw multiple sample lines. The dialog box closes. Define locations for the sample lines in the drawing.
