INTRODUCTION
This tutorial will show you how to transfer any polyline from a layout to a longitudinal profile and cross-sections. In our case, it will be a sewer pipe, but the polyline could also represent a telecommunication cable or any other infrastructure object. In the second part of the tutorial, it will also show you how to calculate the amount of material needed for excavation and filling in cross-sections.
It should be noted here that you can also transfer points and 3D solids from the layout to longitudinal profiles or cross-sections, and vice versa, in a similar way. You can read more about it on the following website:
At the end of this tutorial, you will find a video, PDF instructions, and a DWG drawing!
PREPARATION

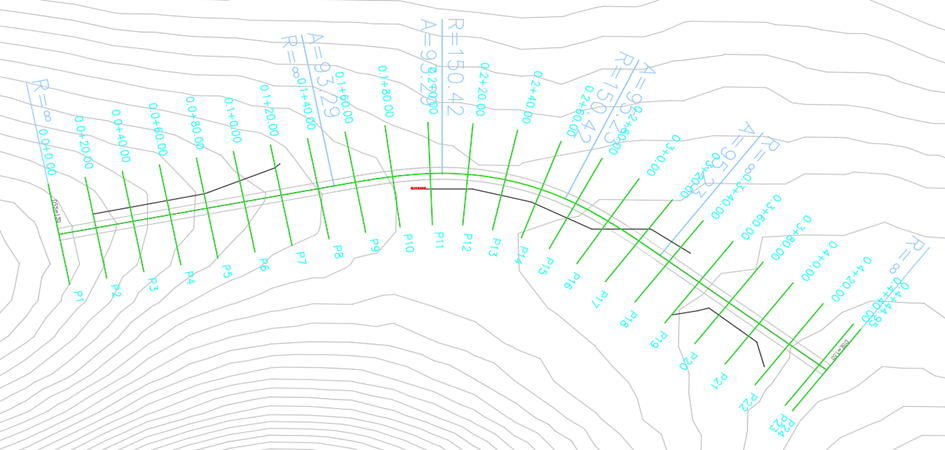

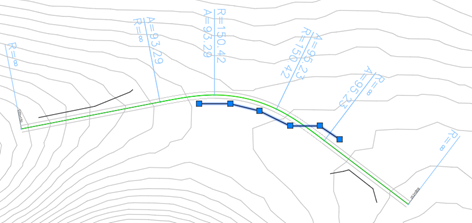

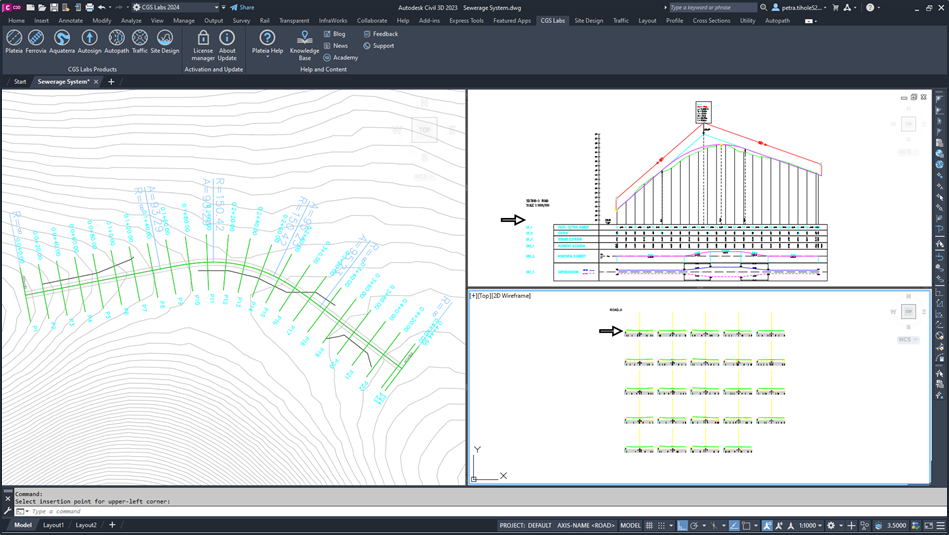

In this tutorial, we will work on a drawing in which the alignment, sample lines, profile, and cross-sections are drawn. In addition, a 3D polyline representing the top of the sewer pipe is also inserted into the layout.
1. Editing 3D polyline

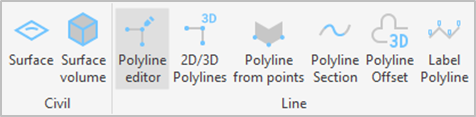

In the drawing, we have a 3D polyline representing a sewer pipe. The heights of this pipe can be easily edited using the "Polyline Editor" tool found in the Site Design tab.
Upon running the command, a dialogue box opens where we can modify the heights of the vertices of the 3D polyline. Right-clicking on the name of the 3D polyline reveals additional options. For instance, you can project the 3D polyline onto a specific surface and then adjust its height, such as lowering it by 1 meter.
1. Run the Polyline editor command.
2. Select the 3D polyline directly in the drawing.

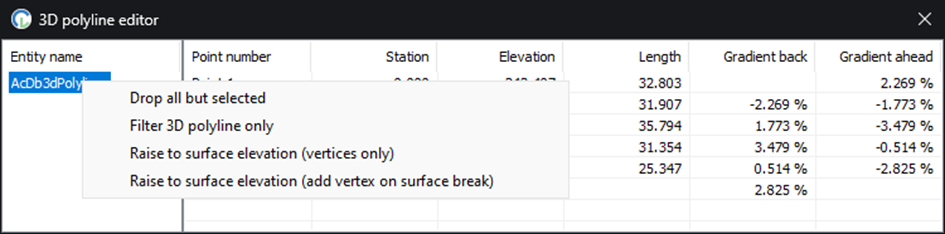

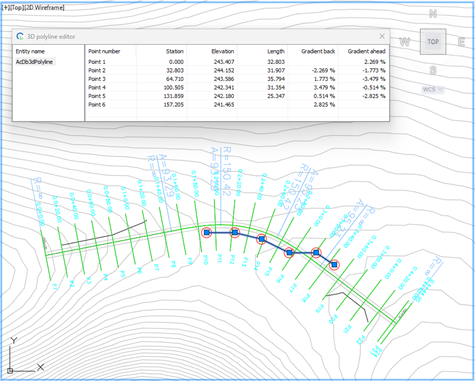

3. In the dialogue box, you can view and edit the heights of the vertices of the 3D polyline.

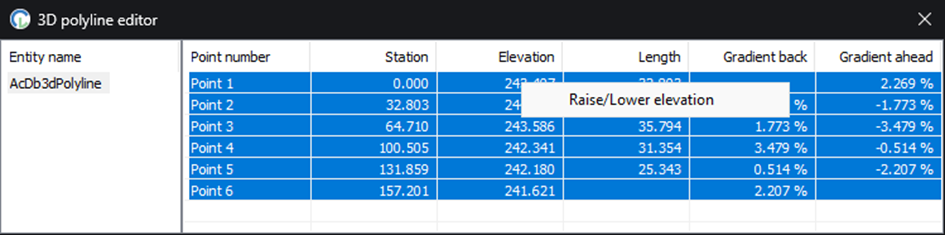

By highlighting cells and right-clicking, you are also provided with the "Raise/Lower elevation" option.
2. Projection Line
Plateia offers the possibility to transfer points, 2D/3D polylines, and 3D objects from layout to profile and cross-sections, and vice versa. This allows users to easily transfer and display objects between different views.
2.1 Define Projection Line
To define the projection line, select the "Define Projection Lines" command (21M3). This command establishes a line in the layout, the projection of which can be displayed later in a longitudinal profile and cross-sections. The label is used for identification when transferring data from the layout drawing to longitudinal and cross-sections.

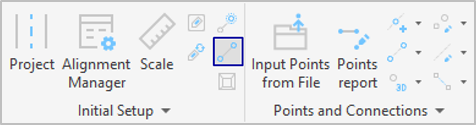

1. Run the Define Projection Lines (21M3) command.
2. Select the 3D polyline directly in the drawing and press Enter.
3. Enter the name »SewerPipe« and press Enter.

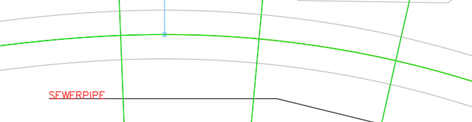

4. If you zoom in on the 3D polyline, you can see that the name of the projection line shows up in the drawing.
2.2 Insert Projection Lines in Profile

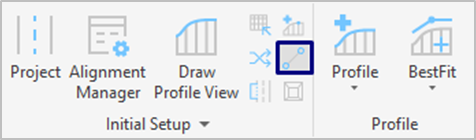

1. Run the Draw Projection Lines (31E2) command.

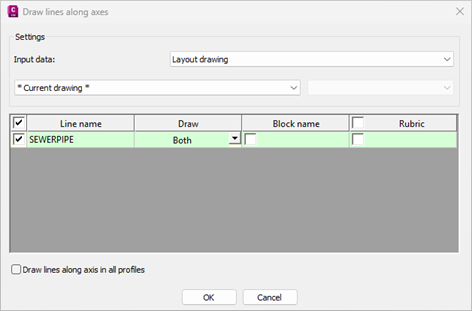

2. It opens a new dialogue box. Check the box next to the SEWERPIPE option and click OK.
If you are interested in understanding the additional settings, please refer to the next tutorial:
Projection lines labelling options in profile view band

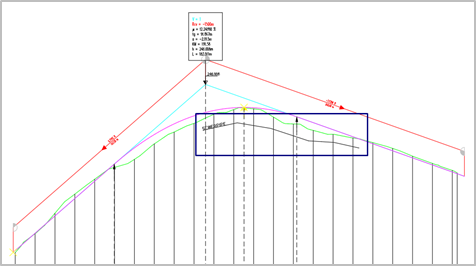

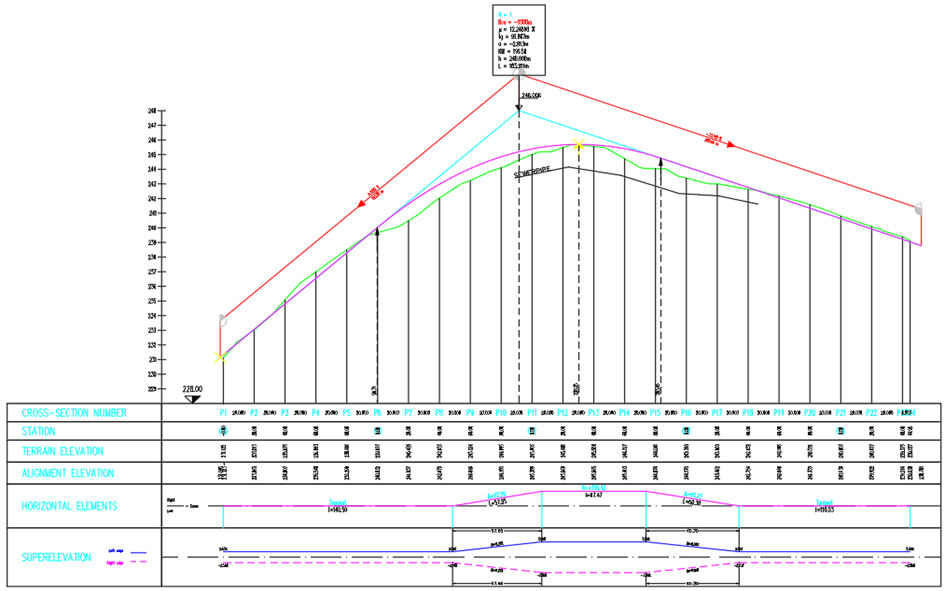

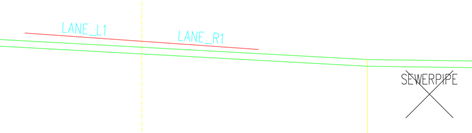

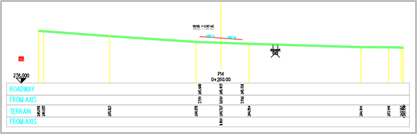

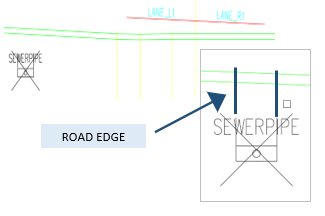

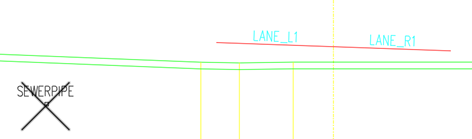

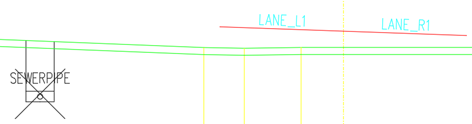

The projection line is inserted into the profile, and its name is also displayed, as shown in the image on the right.
2.3 Insert Projection Lines in Cross-Sections

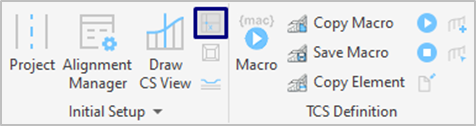

1. Run the Draw Projection Points (41K2) command.
2. Check the box next to the SEWERPIPE option and click OK.

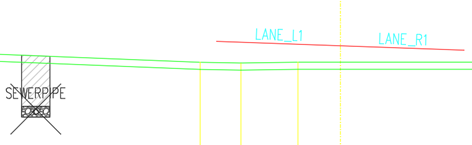

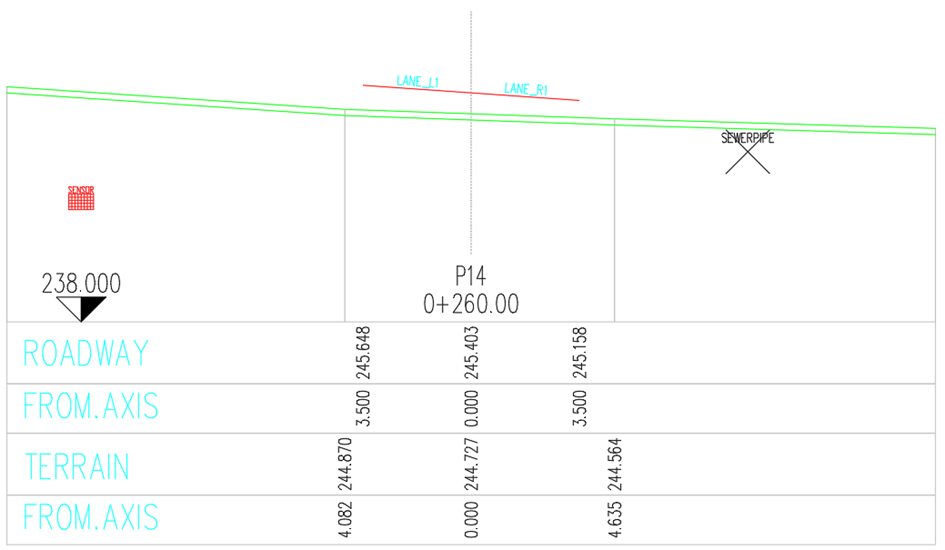

The projection line is inserted into the cross-sections as points, and its name is also displayed, as shown in the image below.
3. Calculation of the amount of material for excavation and fill
3.1 Insert block in cross-sections
In the cross-sections, we will first insert a block that represents the pipe and layers of materials. We will insert a regular CAD block, and it is crucial to determine the Base Point. In our example, the Base Point is placed at the location representing the top of the pipe.

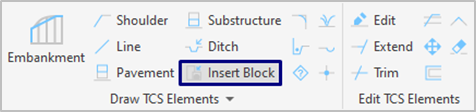

Alternatively, instead of using a block, you can draw individual lines using the commands found in the "Draw TCS elements" tab.
| 1. Run the Insert Block (41GB) command. |
|
|

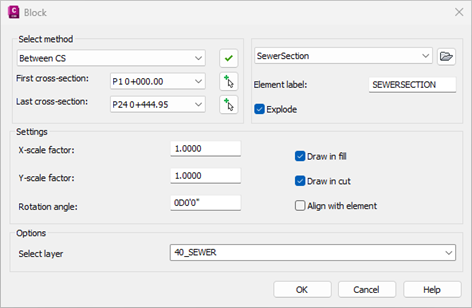

2. Select a block from the drop-down menu.
3. Then, check the box next to the Explode option.
If desired, you can also specify the layer name. You can choose it from the drop-down menu or enter a new name directly in the box.
4. Click OK. |
|
| 5. Select the element and the insertion point. In this case, you click on the projection point that represents the sewer pipe. | |

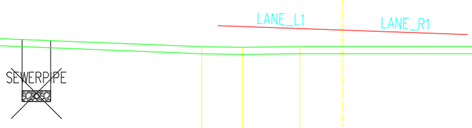

| The block is now inserted in the drawing. In order to be able to calculate the quantities accurately, in the next step, we need to extend the edges to the terrain line. |
3.2 Extend

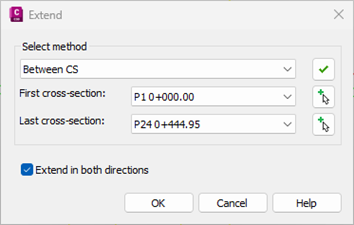

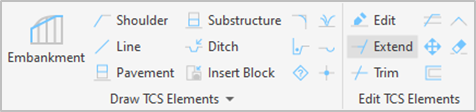

| 1. Run the Extend (41I2) command. |
|
| 2. Select all cross-sections and click OK. | |
|
3. Select the edge (terrain line) and press Enter.
4. After that select the outer edge of the block and press Enter.
|
|
|
Repeat the same process on the other side.
The final result is shown in the picture on the right. |
3.3 Planimetry
Gravel

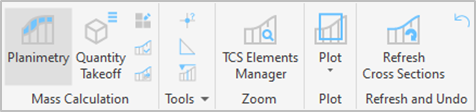

| 1. Run the Planimetry(41M1) command. |
|
|
2. Select all cross-sections.
3. Choose the material from the drop-down menu.

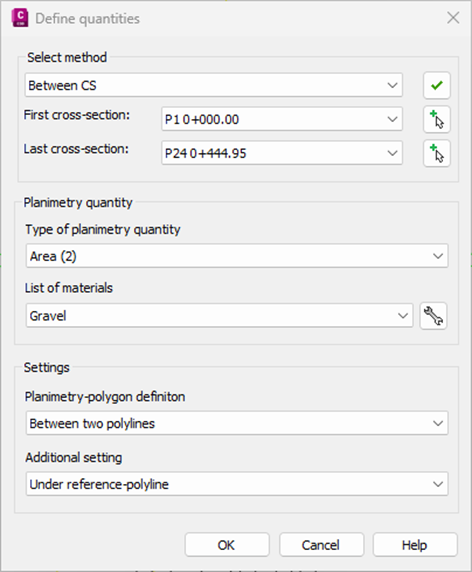

4. Select the planimetry-polygon definition and additional settings from the drop-down menu.
5. Click OK.
6. Select elements for reference polygon and press Enter.
7. Select elements for the second polygon and press Enter. |
|

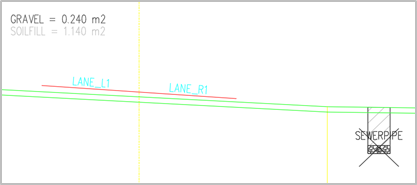

| The planimetry quantity of gravel is shown in the picture on the right. |
Soil fill

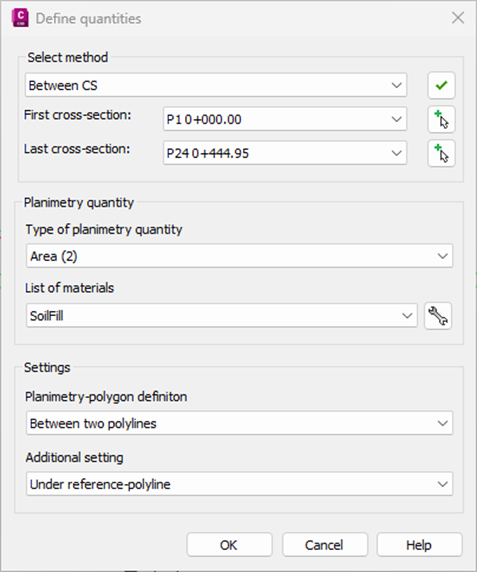

| 1. Run the Planimetry(41M1) command. |
|
|
2. Select all cross-sections.
3. Choose the material from the drop-down menu.
4. Select the planimetry-polygon definition and additional settings from the drop-down menu.
5. Click OK.
6. Select elements for reference polygon and press Enter.
7. Select elements for the second polygon and press Enter. |
|
| The final result is shown in the picture on the right. |
3.4 Quantity Take-Off Report

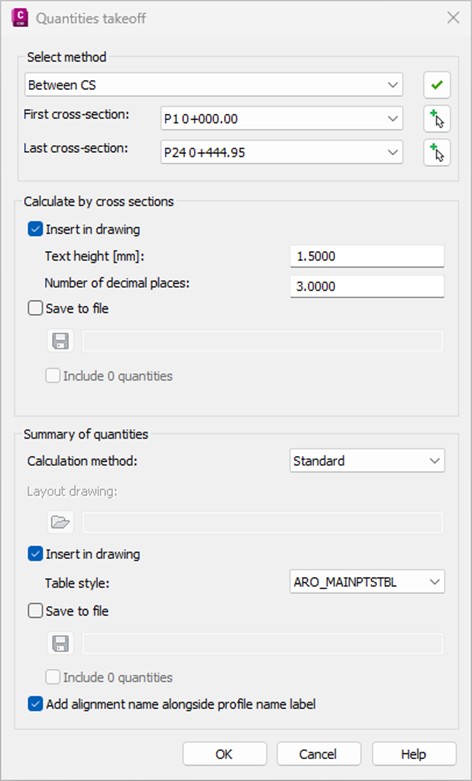

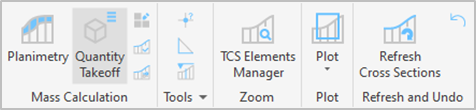

| 1. Run the Quantity Takeoff (41M6) command. |
|
|
2. Select all cross-sections.
3. In the section "Calculate by cross-sections," check the box next to the "Insert in drawing" option, and then select the location for planimetry labels in the drawing.
3. In the section "Summary of quantities," check the box next to the "Insert in table" option, and select the insertion point of the quantity table.
4. Click OK. |

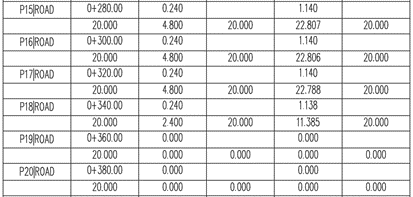

| Display of quantities in cross-sections: | Summary of quantities: |
|
|
|
