Click on the Alignment Manager icon to define the new alignment name.

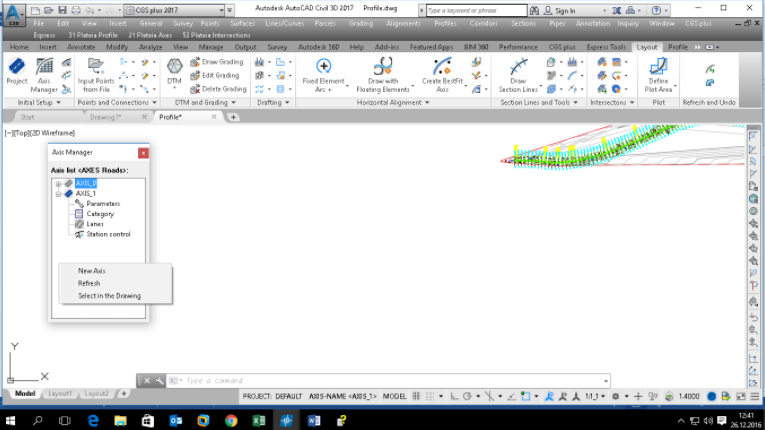

A dialog box with a list of alignment and its parameters opens up. To create a new alignment, right click in the Alignment manager dialog box and select New Axis.

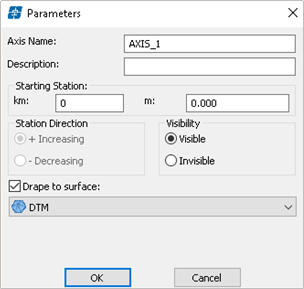

Prior to designing a new axis, you need to define it, by stating the initial properties (description, station, direction …) and define it as a current alignment. You can define the active axis in the status bar or by selecting it in the Alignment Manager.
Define active alignment in Alignment Manager.

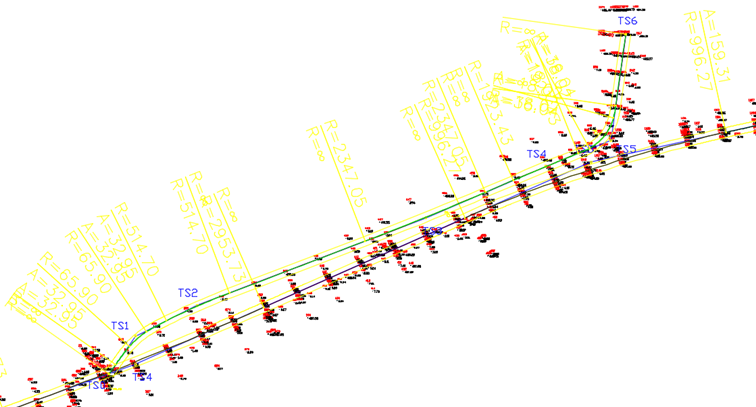

Design an alignment with one of the different methods (check to Create Alignment article).
