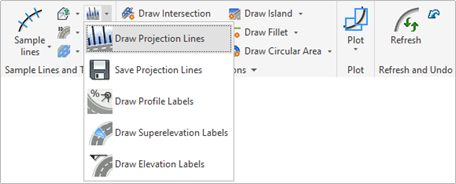

To insert the projection lines in the layout, select the Draw Projection Lines command (21M1). This command is also used to draw cut and fill hatching.

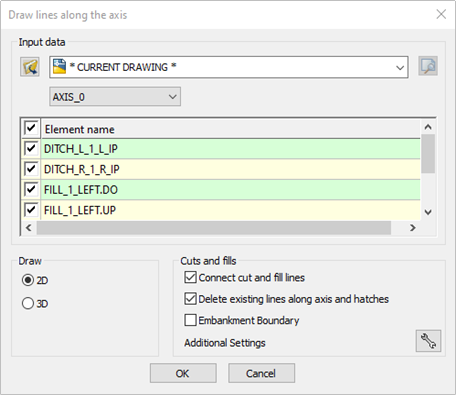

The following dialog box appears.
The projection lines that we wish to draw in the layout, have to be selected from the list.
Under Draw, you can select option 2D or 3D. If you select the 2D, all line coordinates will have an elevation of Z=0, instead if you select the 3D, the line coordinates will have an elevation that was defined in the cross-sections.

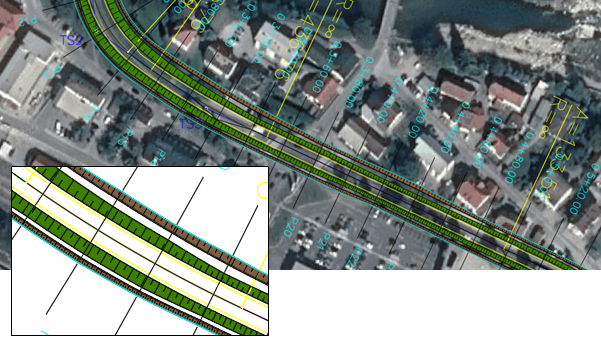

If you want to connect the cut and fill lines, tick the checkbox Connect cut and fill lines. If you switch on the possibility Embankment boundary, around the limits of the box cuts and fill, a closed polyline will be drawn.

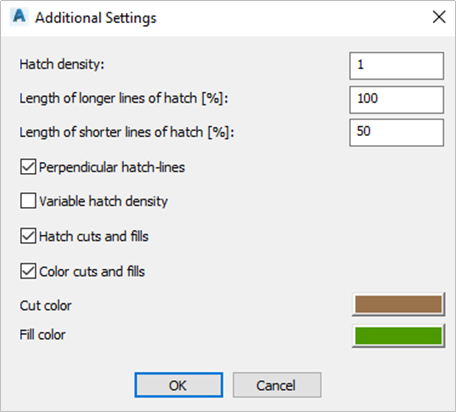

To color the cuts and fill select the button and tick the checkbox Color cuts and fills. In the Additional Settings dialog box, you can also choose to hatch cuts and fils.
If you want to change the cut or fill color, click the button and select the desired color.
