The command enables to calculate the offset of a selected input object and to create the vertical alignment.

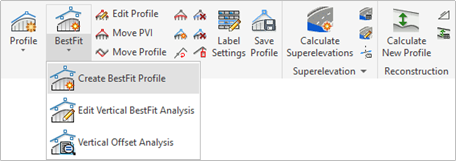

Click on the Create BestFit Profile icon.
Input objects can represent one or two sets of survey points as AutoCAD blocks or polylines. For the reconstruction, as the input objects, we use the reconstruction points.

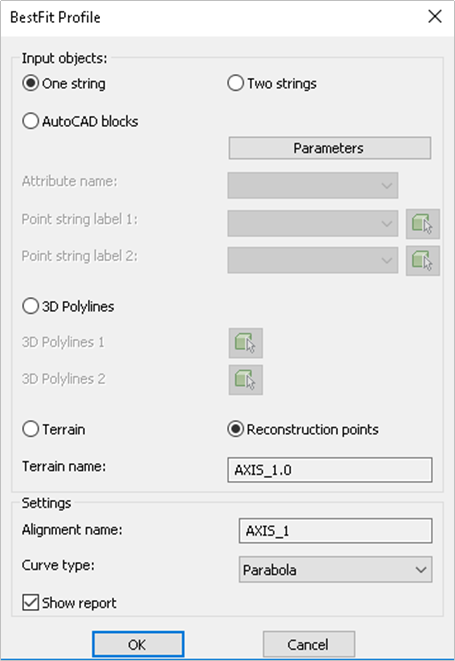

Select One string and tick the Reconstruction points checkbox. To enable the horizontal offset report, including regression analysis result, tick the Show report check box.
Confirm with OK.

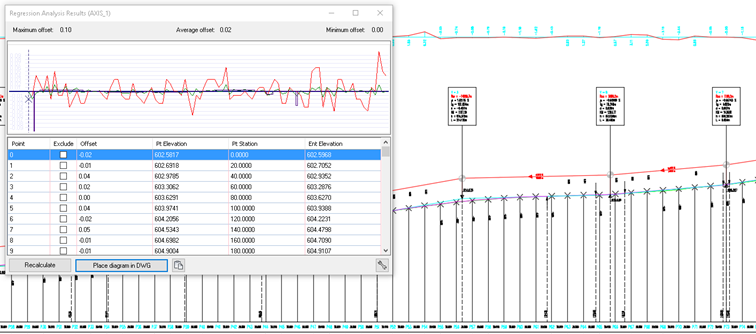

The figure below shows the results of the offset analysis. The program allows checking for each point in the input data set, its offset from the selected Plateia alignments. Calculation settings are not allowed in the dialog, but it’s possible to manage with the diagram settings.
