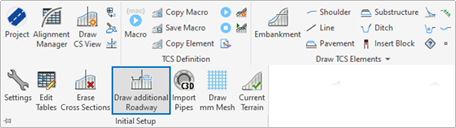

Click on the Draw Parallel Roadway icon.
The main alignment must be set as an active alignment.

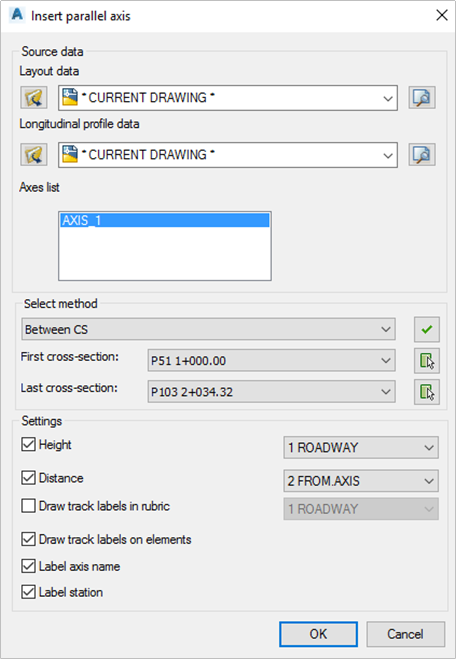

In Insert parallel alignment dialog box define source data: layout data and longitudinal profile data.
In Axes list select the second (additional) alignment.
If the boxes Heights and Distance are checked, the elevation text and the text that describes the distance between the roadway edge and the alignment will be inserted in the selected rubric.

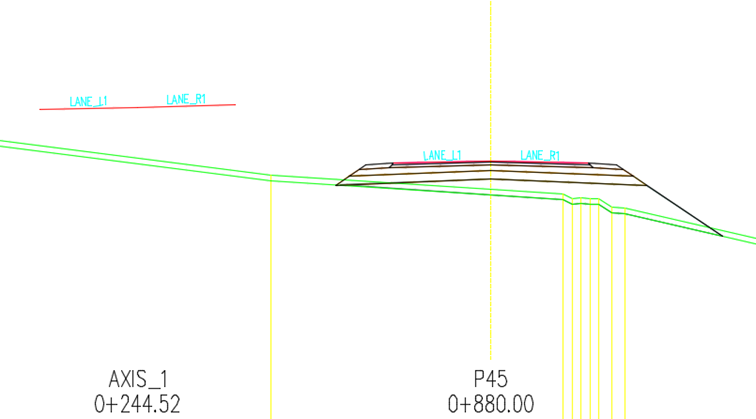

If you want to label lanes names in the table, select the Draw lane-labels option.

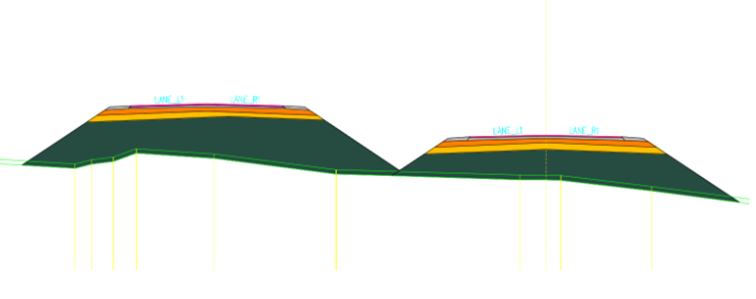

On the second roadway, you can draw TCS elements and planimetry (please refer to Draw TCS Elements and Planimetry articles).
