The command Quantity takeoff calculates the quantities by sections as well as the summary for the whole area. The results can be saved to a file and/or displayed in the drawing.
Click on the Quantity Takeoff icon.

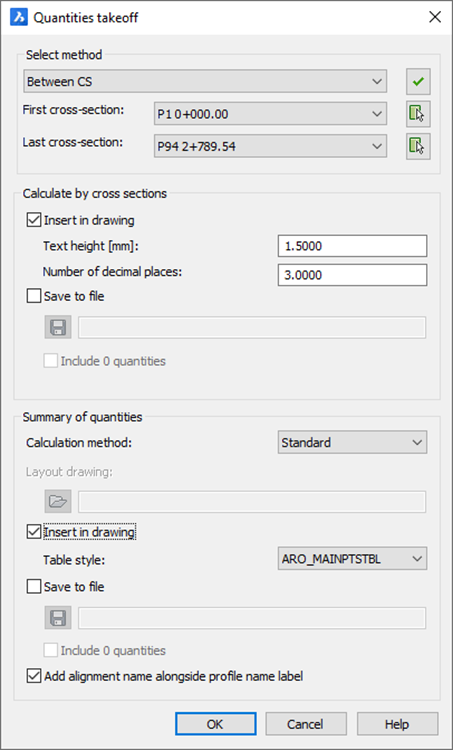

Quantities takeoff dialog box opens. Select the method and define the first and the last cross section.

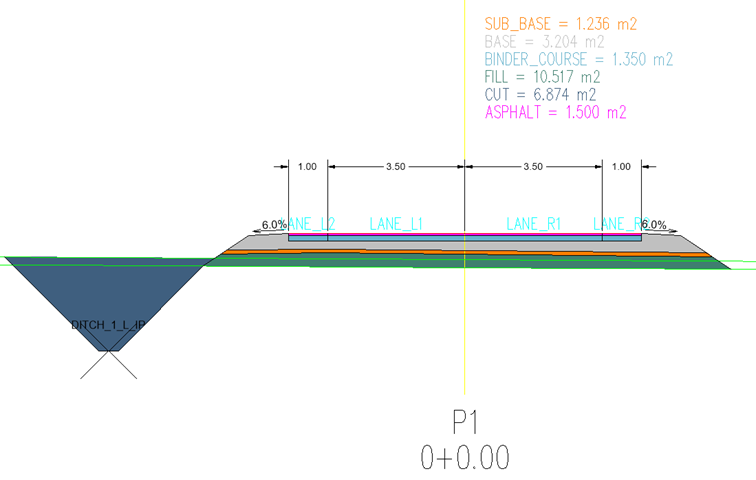

Under the field Calculate by cross sections tick the Insert in drawing checkbox and specify the location of the result in the cross section. The results are displayed in each cross section.
In the Summary of quantities tick the Insert in drawing checkbox and show the location of the table in the drawing. In the drop-down menu, you can select the type of table.
Confirm with OK.

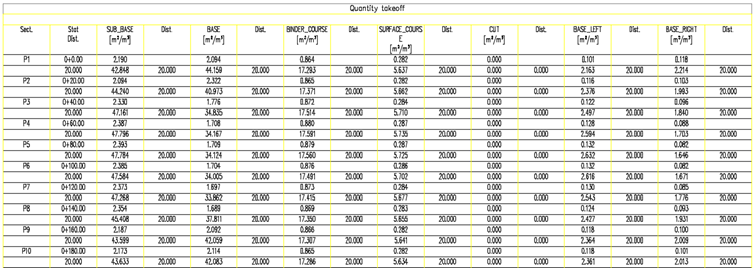

Below is an example of the table with the summary of quantities.
