Plateia Cross sections - Save points to a CSE file

You need to define points first:  Define points for labelling

Run the Save Points -> CSE (41L3) command.

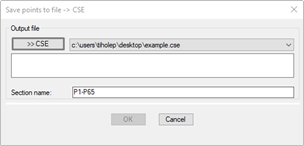

Click on the >>CSE icon and define the name and choose a file location.


Confirm with OK.

Open new blank workbook in Excel.

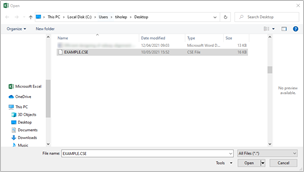

Under the File tab select the Open option and then select Browse.

Select the All Files option and find the CSE file.

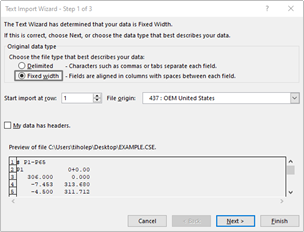

Select the Fixed width option and press Finish.

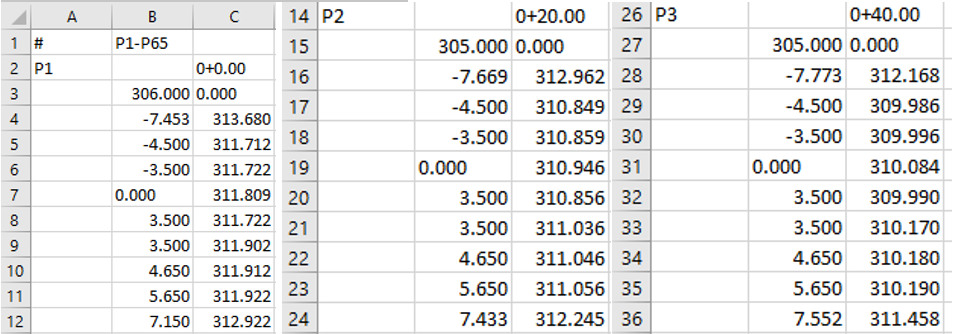

The result is shown in the picture below:
