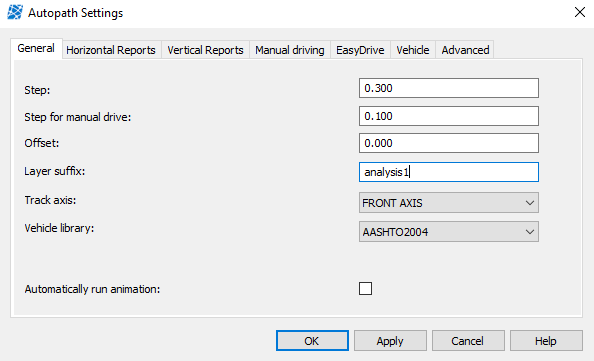

Before starting the analysis select the command Default settings to set default parameters for all types of swept path analysis. Whenever you open a certainly swept path settings dialog box, the present values that were defined in this command will appear.
Several vehicle types and selected vehicle axis combinations are usually tested in the same picture. In order to achieve a fuss-free result browsing add layer suffix to the automatically generated layers.
This option Track axis changes a selected movement axis orientation. You can choose between front axis and back axis.
In the pull-down menu select the vehicle library that will be used in further analysis.
The ˝Autopath Settings˝ dialog box offers many other settings that are described in detail in the Help document. They can be changed over the course of the analysis. We may also access the individual dialog window via other commands, by selecting the button.
