Plateia Utility - IFC Export

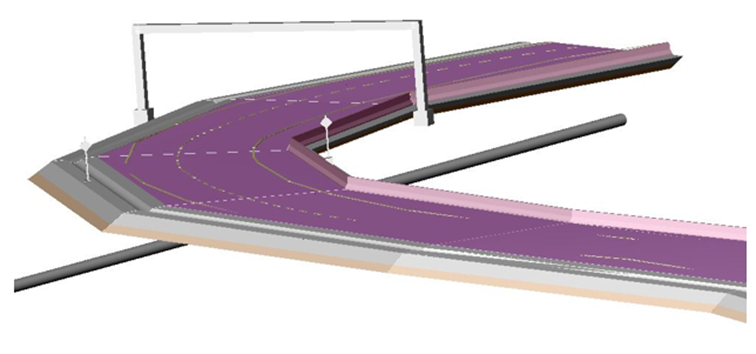

Export 3D solid objects with Property set definitions to external IFC exchange file with IFC Export command.

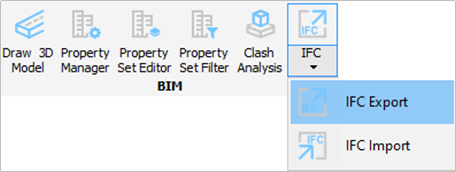

Click on IFC Export icon.

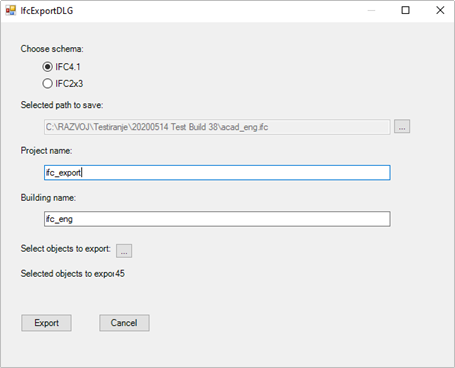

IFC exportDLG dialog box opens. Choose IFC schema, define the location where the file is saved, define project, and building name.


With the button   select objects to export.

Confirm with Export.
