Ferrovia Cross sections - Draw Cross-Section Views

Click on the Draw CS Views icon.

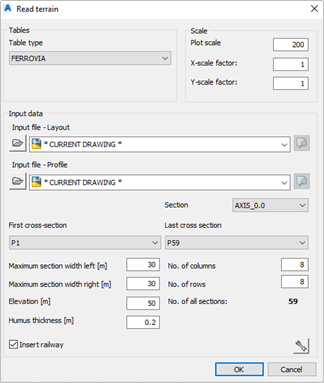

Choose Ferrovia table type, for source data use *Current drawing*, or select another drawing if you started to draw cross section views in a new drawing.


Define the horizontal and vertical scale of tables inserted.

Select the first and the last cross-section in selected sections/segments.

If the button Insert railway is checked, the railway will be inserted automatically in the cross sections.
