EasyDrive is an interactive method to define the vehicle route. It calculates the horizontal turning curves with the interactive presentation of the route.
After starting the command choose a type of vehicle you want to use in the analysis.
Select the starting point (middle point of the front axle) and give the direction of the vehicle. Then add the points to the vehicle path which will create the appropriate route.

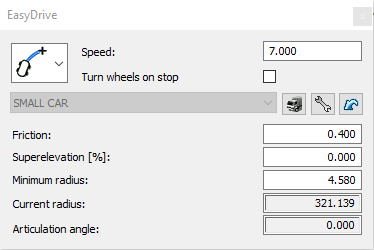

While giving route details the ˝EasyDrive˝ dialog box appears, where you define the speed, friction, superelevation of the road, and the minimum possible radius that can be driven with the vehicle at the selected speed, friction, and superelevation of the road.
To define the vehicle route use the control. You can select from driving straightforward or curved driving. After pressing ENTER or ESC the analysis is drawn into the drawing.

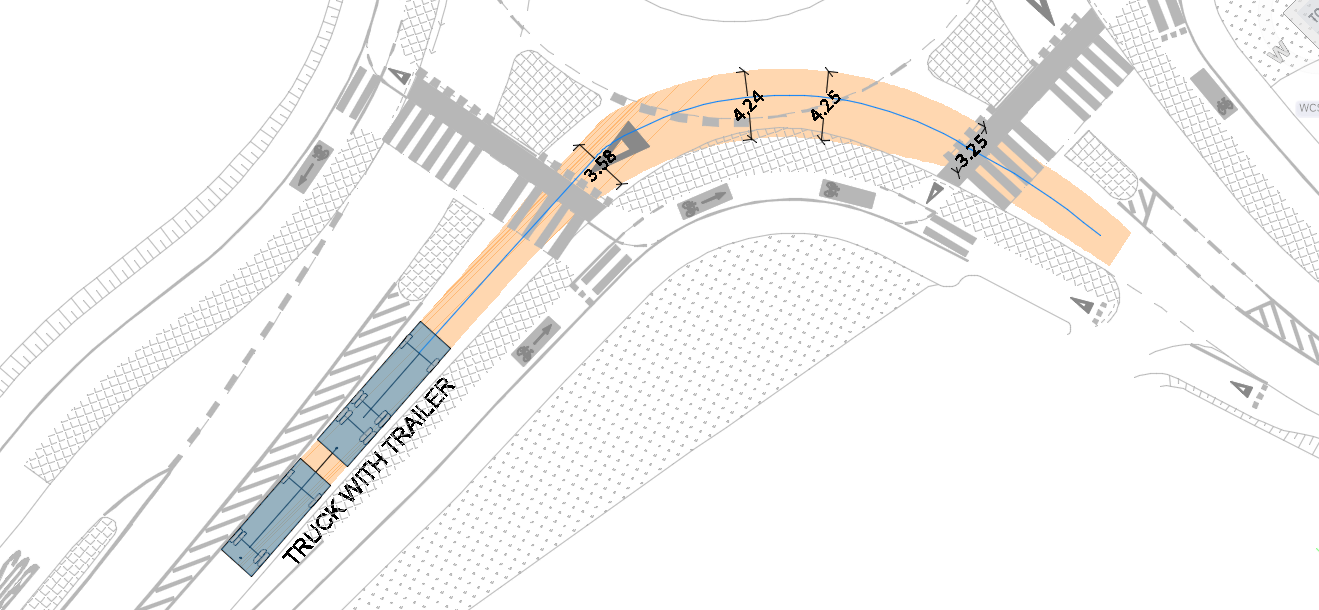

The program allows you to automatically measure and label the maximum swept path width. You can also make adjustments to a vehicle`s path through manipulation of points along the travel way and the measure and label maximum swept path width will automatically refresh.

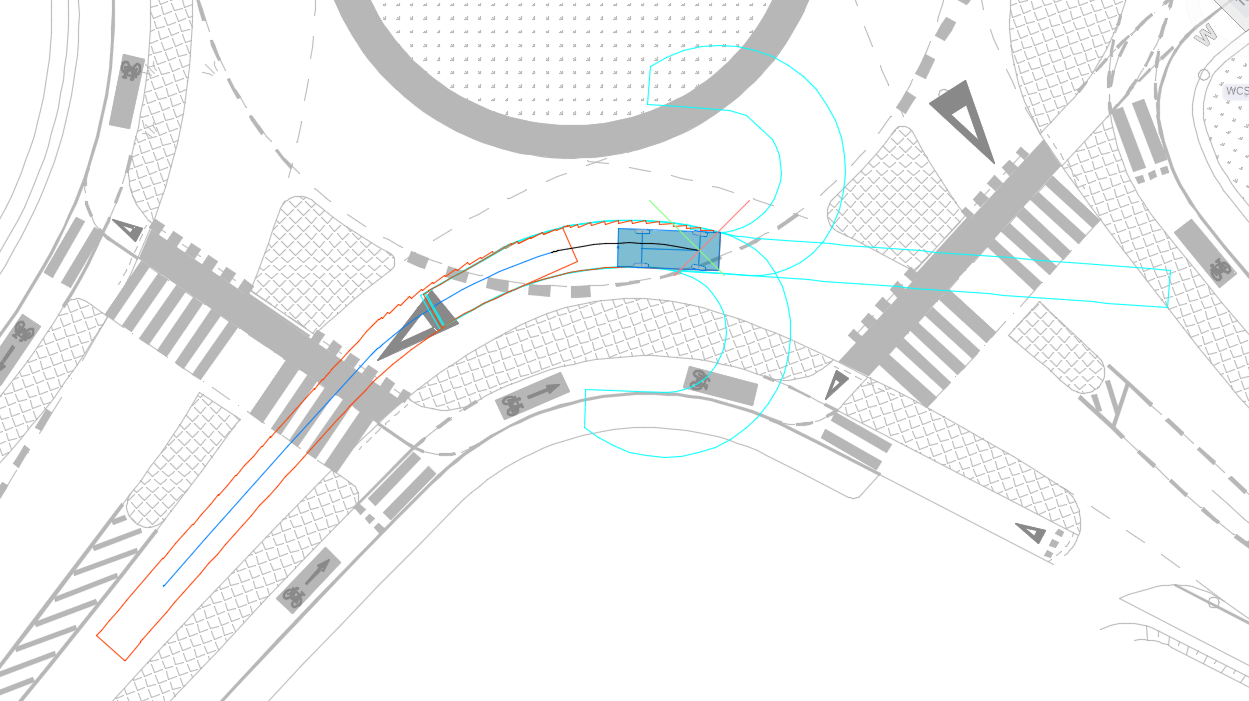

You can make adjustments to a vehicle`s path through manipulation of points along the travel way, allowing for fine-turning of vehicle position. To edit the drawn route select the vehicle axis and the handles will appear. Move the selected vertex to a new location. The program allows you to see the position of the new route.
Tutorial video:
