Ferrovia Utility - IFC Export/Import

Export 3D solid objects with Property set definitions to external IFC exchange file with IFC Export command.

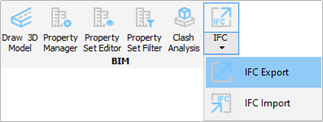

Click on IFC Export.

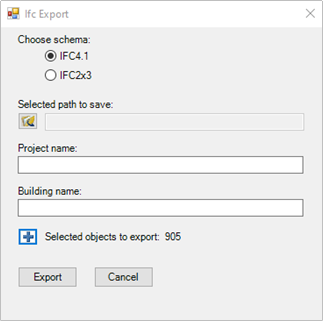

IFC export dialog box opens. Choose IFC schema, define location where file is saved, define project and building name.


With the button  select objects to export.

Confirm with Export.
