The program allows you to simulate the vehicle course on the selected route.

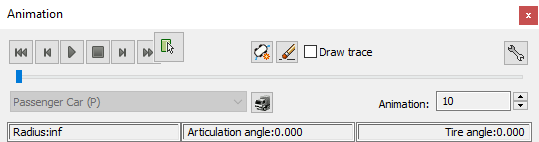

After pressing the command Animation, select the route in the drawing and the following dialog box appears:
Define animation speed in and start the animation with the button
. To stop the analysis press the button
. With
you guide the vehicle on selected polyline with your mouse.
If you want to open the vehicle library with the current vehicle setting select the button. By clicking
a dialog box for setting the swept path analysis parameters opens.
If you want to copy or move the created analysis select the analysis and press the AutoCAD command COPY or MOVE. Then define the new location in the drawing. Create an analysis of the copy route with the command Animation.
