The Traffic Sign section includes a wide range of traffic signs and post blocs with added attributes.
- Insert traffic signs in the drawing with the icon Traffic Sign.

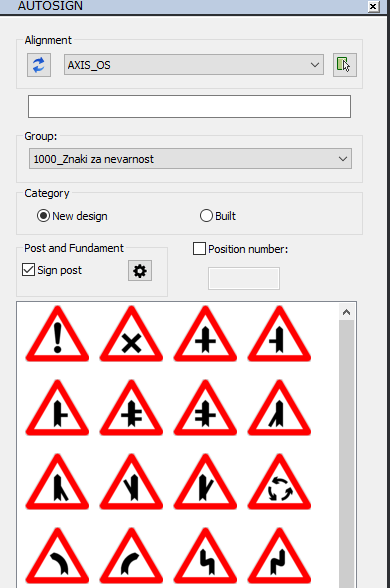

- Autosign dialog box with traffic signs appears on the left side.
- Specify the alignment you want traffic signs to be attached. Autosign supports alignments created by Plateia and AutoCAD Civil3D.
- Select the category of the sign: New sign in the drawing or existing traffic sign on the road.
- Post and Fundament: set dimension and shape of the posts and foundations of the traffic signs.

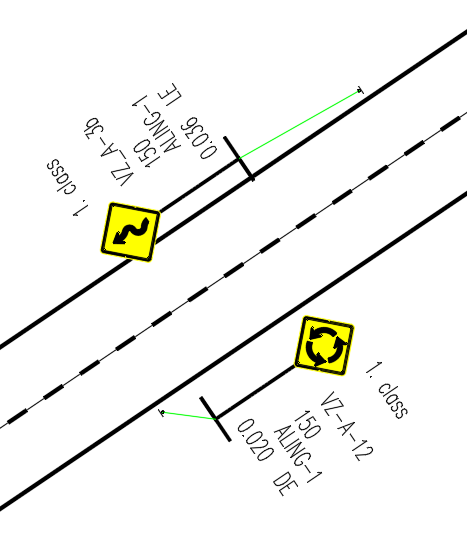

- At the input of an individual sign determine the stand of the traffic sign, its position, rotation, and size.
