Plateia Utility - Google Maps Import

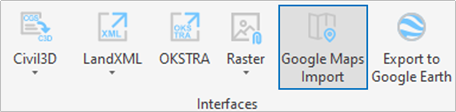

Click on Google Maps Import icon.

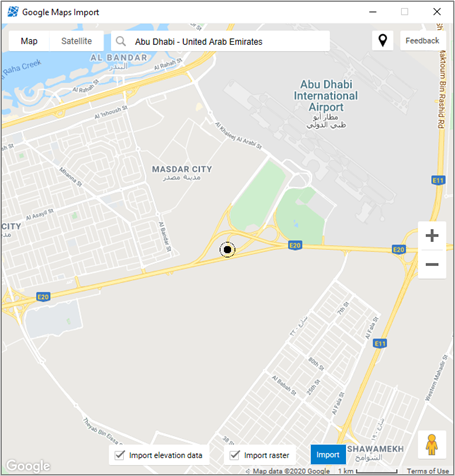

In the upper part of the dialog box (in the search tab) insert the location name and click Enter.

With zoom/pan commands, you can zoom in or out and find the appropriate location.mceclip1.png

Check Import elevation data and/or Import raster and click Import.

Coordinate System Transformation dialog box appears. Specify the Country and Coordinate system.


Confirm with OK



*This functionality is not supported on Autodesk version 2016 (and older) and BricsCAD v17 (and older).
