Click on the Alignment Manager icon to define a new alignment name.
A dialog box with a list of alignments and their parameters opens up. To create a new alignment, right-click in the Alignment manager dialog and select New Axis.
Prior to designing a new alignment, you need to define it by stating the initial properties (name, description, starting station, spiral type…) and define it as a current alignment.

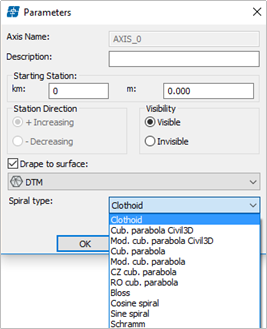

In the Parameters sub setting define the new alignment name and starting station. Station direction on alignment can increase or decrease. If you have more than one alignment, you can make a selected one invisible. This means that all layers related to a selected alignment can be automatically switched off. In the drop-down menu select the spiral type.
When parameters for new alignment are defined, set the design speed for alignment in Category subsetting and define design speed influences on alignment design parameters. If you press the button you can define different speeds for different areas along the alignment. At least select the gauge.
