Ferrovia Profile - Draw Profile View

Click on the Draw Profile View command.

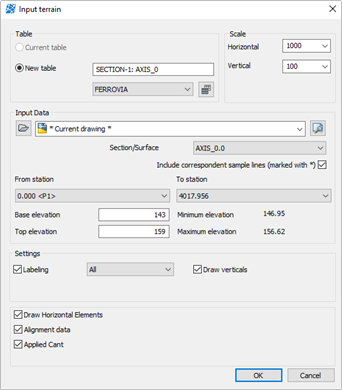

Select Ferrovia table type, for source data use *Current drawing* or select another drawing to which your alignment design was saved if you started to draw the profile in a new drawing.


Press OK and define the location of the profile view in the drawing.
