The command is intended for the creation of a new property set. It’s not allowed to edit or delete predefined property set - »CGS«, but command enables to add new property set on the basis of existing ones.

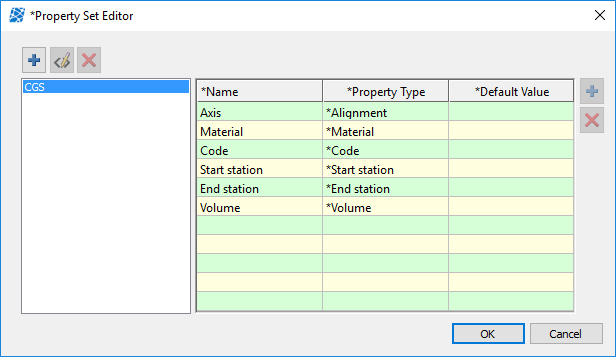

1. Click on the icon Property Manager.

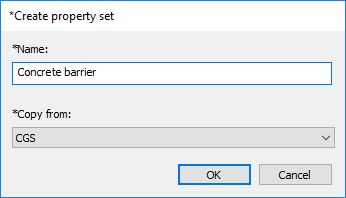

2. Click on the button to create a new property set. In the Create property set dialog box, type the name and select an existing property set as a template for the new one.

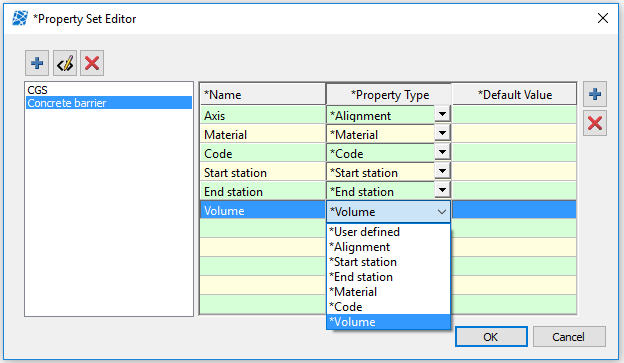

3. Newly created property set appears in the list of existing property sets on the left side in the dialog box.
4. To add a new property to the existing property set, click on the button. In the Create property dialog box define a new name, property type, and default value.
