Plateia Cross sections - Draw cross section View

Insert cross section table views with Draw CS View command.

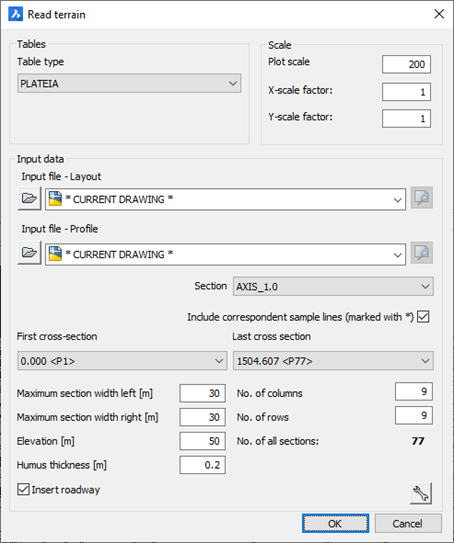

Choose Plateia table type, for source data use *Current drawing*, or select another drawing if you started to draw cross section views in a new drawing.


Define horizontal and vertical scale of tables inserted.

Select the first and the last cross-section in selected sections/segments.

Check Insert roadway to insert the roadway in the cross section automatically.

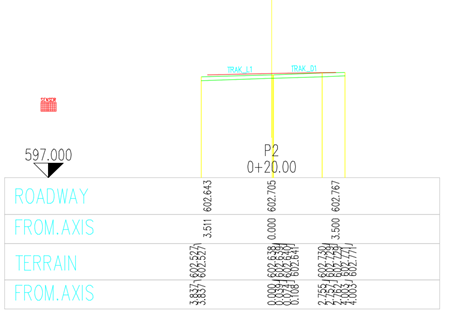

Confirm with OK and define the location of Cross sections view in the drawing.
