1. Create a swept path analysis.

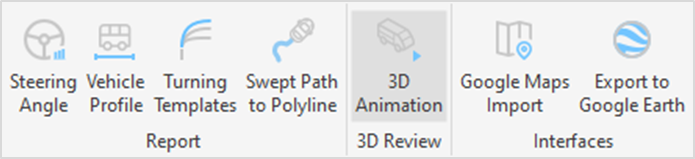

2. Run the “3D Animation" command and select the swept path analysis in your drawing.

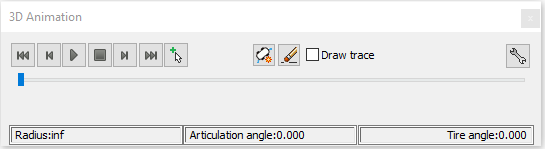

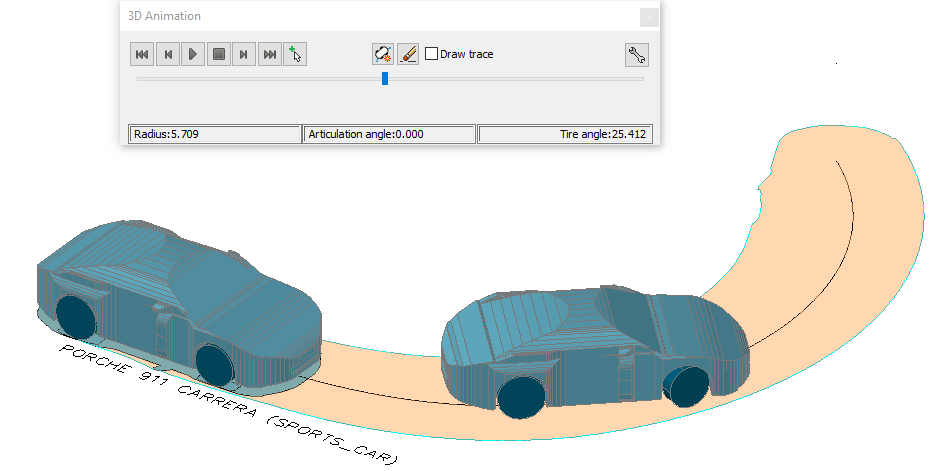

3. At this point, the vehicle 3D model is created and the “3D Animation” dialogue box pops up.
4. Within this dialogue box, we can find the different options to handle the 3D animation of the vehicle:
- play animation,
- stop animation,
- move forward animation,
- move backwards animation,
- move to the beginning animation,
- move to the end animation,
- place the 3D vehicle at any point along the path manually,
- take stamps of the 3D vehicle over the path,
- draw the trace of the 3D vehicle along the path,
- erase all the stamps and traces from the path and
- access the settings dialogue box.
