Category: Properties
Topic: Simulation Envelope Layers/Levels

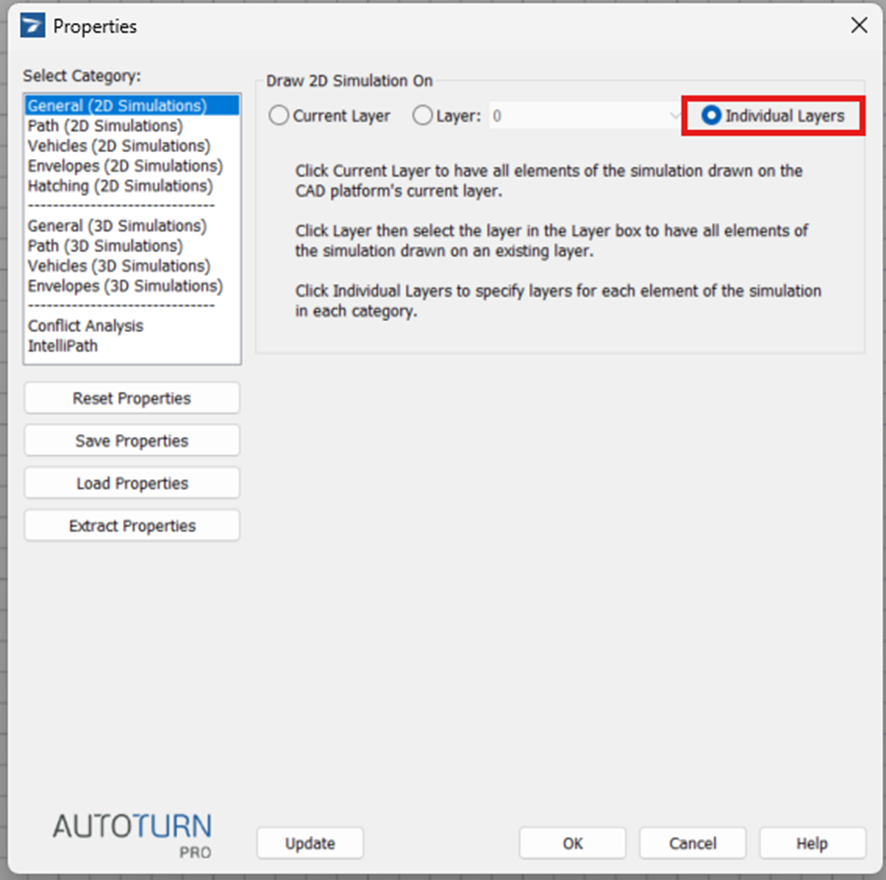

Answer: To configure the layers/levels in which simulations are drawn in, go to Properties, Category -> General (2D Simulations) tab and select Draw 2D Simulation On "Individual Layers"

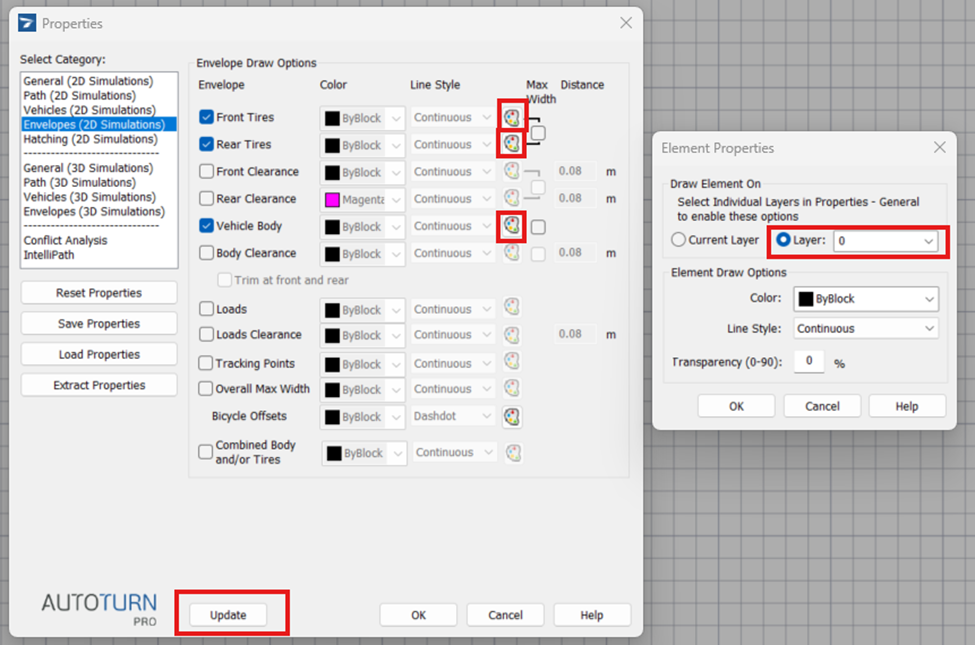

On the "Path/Vehicles/Envelope (2D Simulations)" tab, select the palette icon of the individual component that you would like to configure and choose to draw the element on a specific layer or level.
The steps above will apply to all new simulations. To update existing simulations, click on the update button and select the simulation on your drawing that you would like to update. This process can be repeated to configure the layer/level configuration of individual paths.
