Standard vehicles:
These vehicles are based on design guidelines arranged in standard vehicle libraries (SVL). These vehicles do not contain any signs next to their name and can be copied and modified to create custom vehicles.

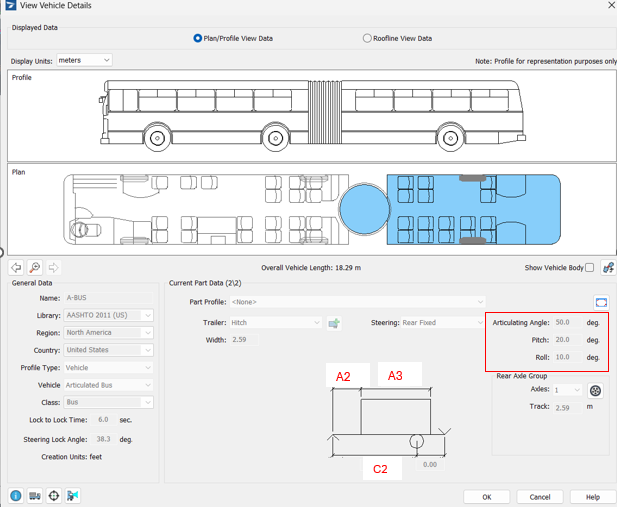

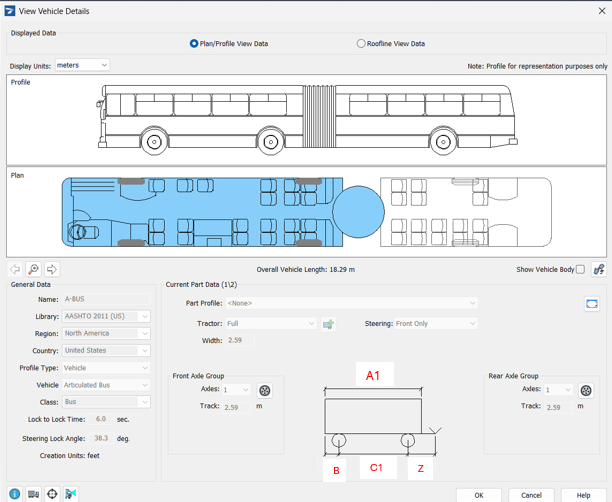

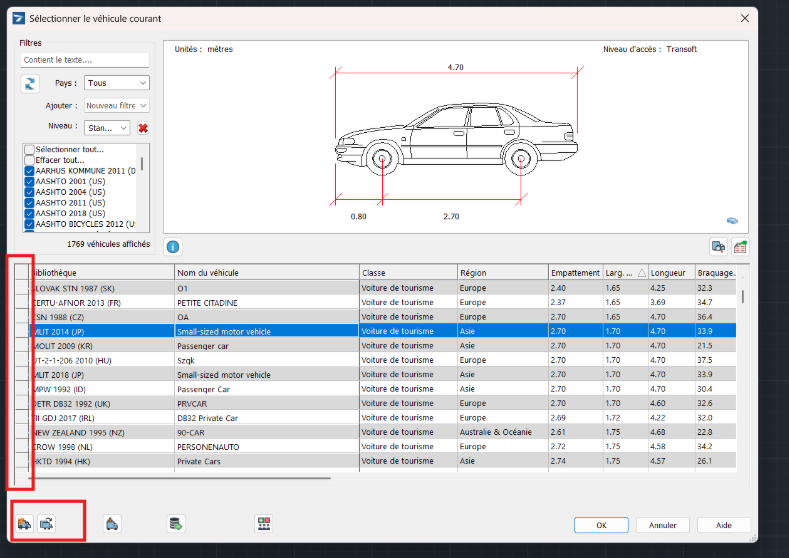

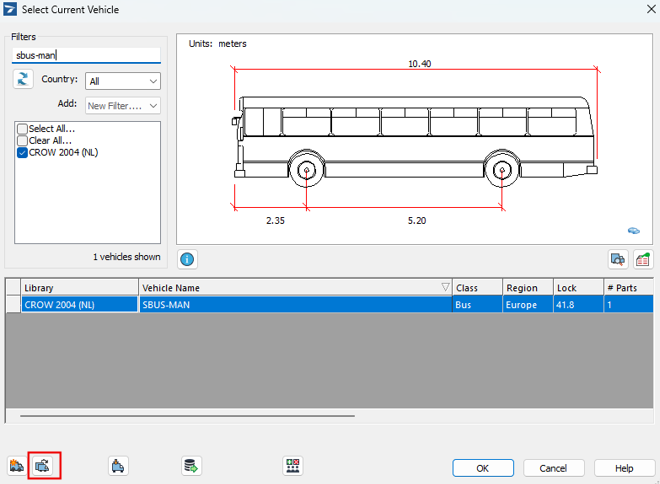

Select the vehicle you want to customize from the Standard Vehicle Library and copy the vehicle.

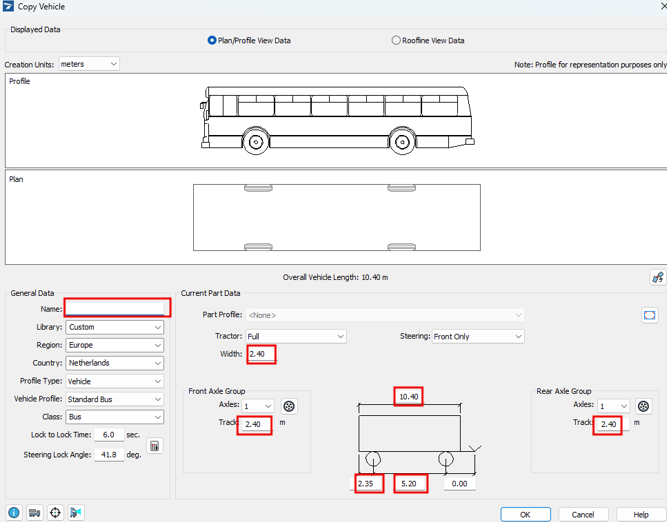

Once you copy the vehicle, you will be able to give the vehicle a new name and change the dimensions, as illustrated below (the fields are editable)
Adjusting/changing the vehicle dimensions

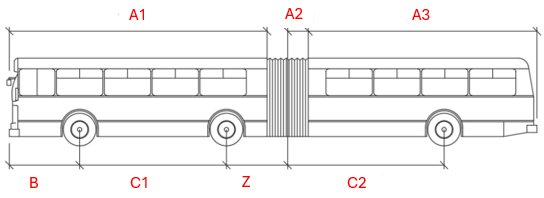

Overall length and Wheelbase

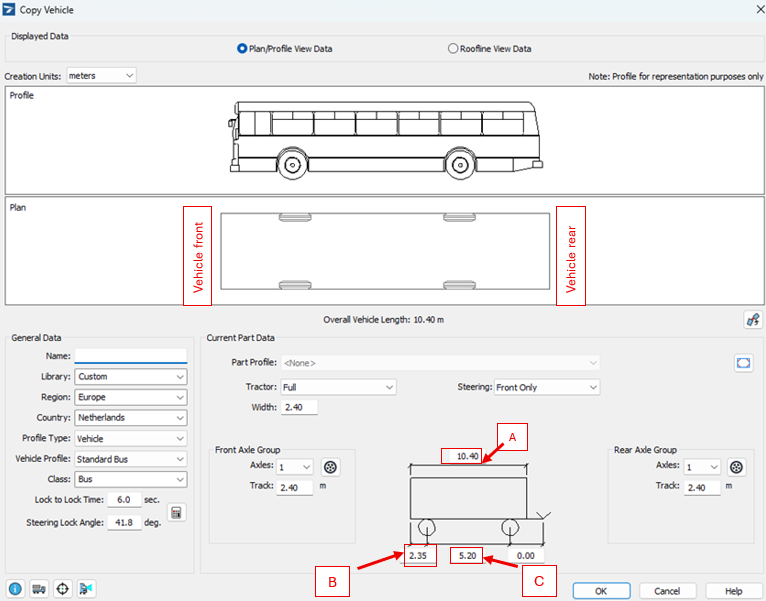

The locations to insert the values for the length and wheelbase are indicated in the below figure.
| A | Overall Length |
| B | Front overhang |
| C | Wheelbase |

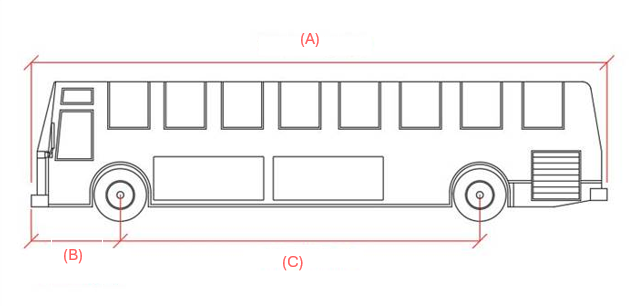

The front overhang of the vehicle and the wheelbase
The front overhang of the vehicle is the distance from the center of the front axle group to the outside of the vehicle's front bumper.
For single unit vehicles, the software auto-calculates the rear overhang value (0.00 value in the image) from the entered overall length and front overhang values.
| A | Overall Length |
| B | Front overhang |
| C | Wheelbase |

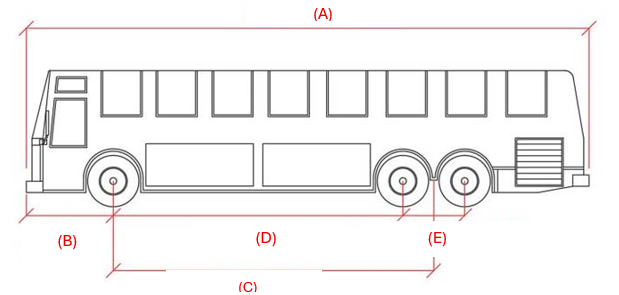

For multi-rear axle vehicles
The wheelbase value is measured from the center of the front axle to the center of the rear axle group.
| A | Overall Length |
| B | Front Overhang |
| C | Wheelbase |
| D | Axle Spacing 1 |
| E | Rear Axle Spacing |
Height and ground clearance

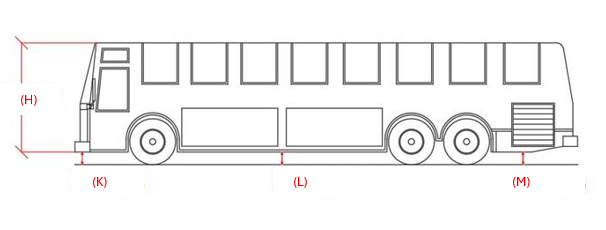

The ground clearance is measured from the surface of the terrain to the lowest point of the vehicle.
| H | Height |
| K | Front Ground Clearance |
| L | Wheelbase Ground Clearance |
| M | Rear Ground Clearance |
Width and track values

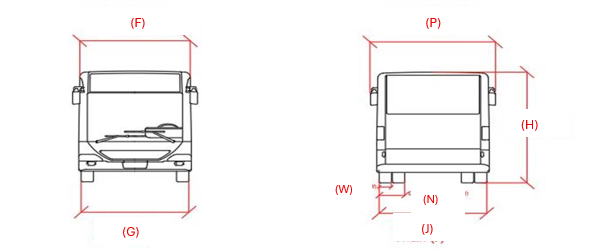

The front and rear track values considered in AutoTURN are the outer distance between the outer left and right wheels.
| H | Height |
| F | Vehicle width without Mirrors |
| G | Front Track Width |
| J | Rear Track Width |
| N | Dual Wheel Width |
| P | Vehicle Width with Mirrors |
| W | Tire Width |
Note:
- For some of the special transport vehicles, vehicle customization is not allowed to prevent producing unrealistic situations. Alternatively, Project Support Services (PSS) can be used to assist in creating complex custom vehicles for a fee.
-
What Is Vehicle Project Support Services?
We can help you create custom vehicles to meet your unique requirements.
If you’re unable to find a specific vehicle in our libraries—whether it’s a passenger, emergency, special transport vehicle, or more—we can create it for you to address your team’s unique design challenges.
See full article here:
https://helpdesk.transoftsolutions.com/hc/en-us/articles/31417823725843-AutoTURN-Feature-Vehicle-Creation-Why-am-I-unable-to-edit-special-transport-vehicles
-
How do I submit a request for vehicle Project Support Services?Please contact pss@transoftsolutions.com for more information.
- For further vehicle customization requests, we offer customized training (for a fee). Please contact our Sales department for further information regarding the customization process at sales@transoftsolutions.com.
