These steps require no IT admin rights
Preparation: Copying the Universal API Key (this gives you access to the OS DataHub mapping)
This API key should be retained, so the following 3 steps are precautionary only
1. On the KeyOSC Mapper ribbon, click the OS Hub Options icon

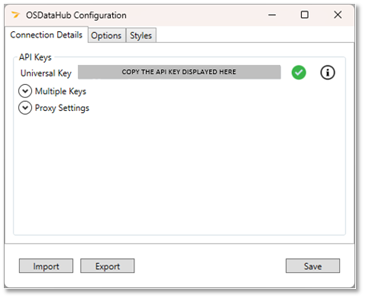

2. On the Connection Details tab, highlight and copy the Universal API Key
Paste this API key into a blank Word/Notepad file for later use,
or use Windows + V to recall it (same day only)
3. Close the OSDataHub Configuration dialogue
Unloading and reloading the KeyOSC Mapper ribbon
1. Open the KeyACCIDENT GIS module (AutoCAD). In the command bar, type and enter MENULOAD
2. Select KOS_MAPPER and click Unload
3. Close the Load/Unload Customizations dialogue
4. In the Command bar, type and enter OPTIONS

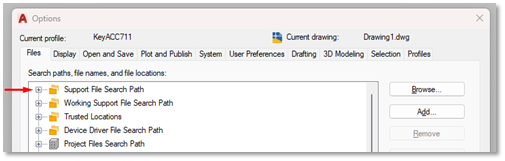

5. In the Files tab, expand the Support File Search Path folder by clicking on the small +

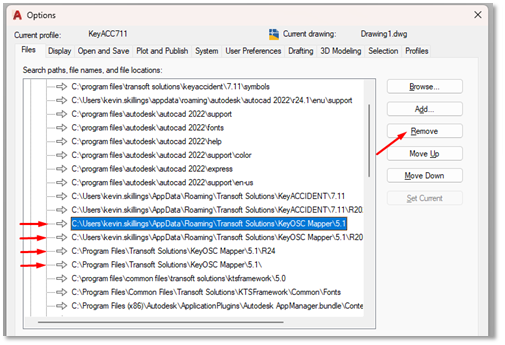

6. Scroll down and find the paths relating to KeyOSC Mapper
7. Select them one at a time and click Remove for each of them
ONLY remove these KeyOSC Mapper paths
8. Click OK
9. In the Command bar, type and enter KEYOSCMENU
This reloads the KeyOSC Mapper ribbon in ‘Classic’ mode
Follow steps 10 – 11 to switch to OS Data Hub mode
Switching back to OS DataHub mode
10. At the far end of the KeyOSC Mapper ribbon, click this icon to switch the Mapper mode

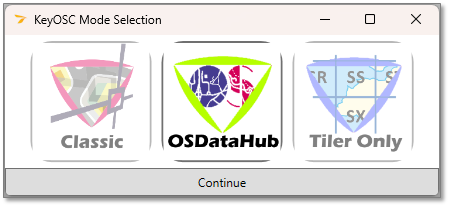

11. Select the OSDataHub icon and click Continue
Check that the Universal API Key is present
The API key should have been retained by KeyOSC Mapper
If the API key is present, the KeyOSC Mapper ribbon reload is complete
Refer to preparation steps 1-3 on the following page if the API key is missing
Restoring the Universal API Key
1. On the KeyOSC Mapper ribbon, click the OS Hub Options icon

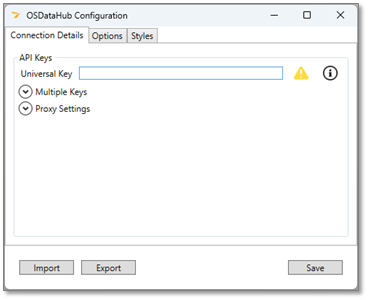

2. On the Connection Details tab, copy the Universal API Key from your Word or Notepad file
Paste it into the Universal Key field
Click Save
3. Close the OSDataHub Configuration dialogue
The KeyOSC Mapper ribbon reload is complete
